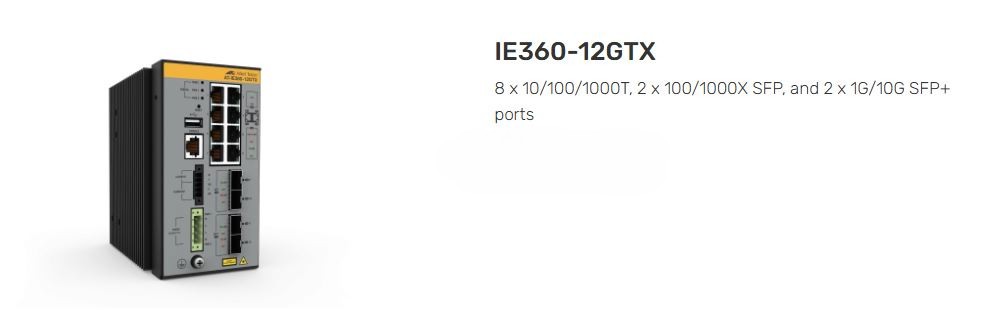

ALLIED TELESIS | TAA | AT-IE360-12GTX-980
TAA 8x 10/100/1000T, 2x 100/1000X SFP, 2x 1/
Switch – IE360-12GTX – Wired – 10Gbps – Gigabit Ethernet – 512MB RAM – 128MB Flash Memory – 18 57V DC – 10/100/1000T (RJ-45) Copper, 100/1000X SFP, 1/10G SFP+, Serial console, USB 2.0 – Five-year limited hardware warranty
The IE360 Series Industrial Ethernet Layer 3 switches provide secure data transfer to support critical infrastructure in harsh environments, such as industrial automation, marine, oil and gas, transportation, and more. The Power over Ethernet (PoE++) model enables connecting and powering key endpoints and IoT devices for seamless and efficient infrastructure operation.
- Primary Information
Network Device Type: Switch Model: IE360-12GTX Connectivity Technology: Wired Data Transfer Rate: 10 Gbps Networking / Ports Qty: 14 Data Link Protocol: Gigabit Ethernet RAM / Total Installed Size: 512 MB Flash Memory / Installed Size: 128 MB Networking Compliant Standards: 802.1p, 802.1s, 802.1w Media Layer Supported: Layer 3, Layer 2 Power / Device Type: Power Supply Uplink Port: 2 Max Power Consumption: 25 Watt Power / Voltage Required: 18~57V DC - Network
Power Over Ethernet (PoE) Support: None PoE Power Consumption: None MAC Address Table Size: 16K entries Jumbo Frame Support: 12KB Remote Management Protocol: VLAN; RMON; SNMP Routing Protocol: OSPF, BGP, RIP Encryption Algorithm: MACsec Authentication Method: RADIUS, TACACS+, MAC-based 10/100/1000BASE-T Ports: 8 SFP Ports: 2 SFP+ Ports: 2 Interfaces: 10/100/1000T (RJ-45) Copper, 100/1000X SFP, 1/10G SFP+, Serial console, USB 2.0 - Interfaces / Ports
Interfaces: 10/100/1000T (RJ-45) Copper, 100/1000X SFP, 1/10G SFP+, Serial console, USB 2.0 10/100/1000BASE-T Ports: 8 SFP Ports: 2 SFP+ Ports: 2 - Dimensions&Miscellaneous
Width: 3.58 Inch Depth: 6.23 Inch Height: 6.02 Inch Weight: 2.1 Kg - Service&Support
Service & Support Type: Five-year limited hardware warranty - Special Feature
Min Operating Temperature: -40 Celsius Max Operating Temperature: 75 Celsius Min Storage Temperature: -40 Celsius Max Storage Temperature: 85 Celsius RoHS: Y COO: SINGAPORE - UNSPSC Code
UNSPSC Code: 43222612
