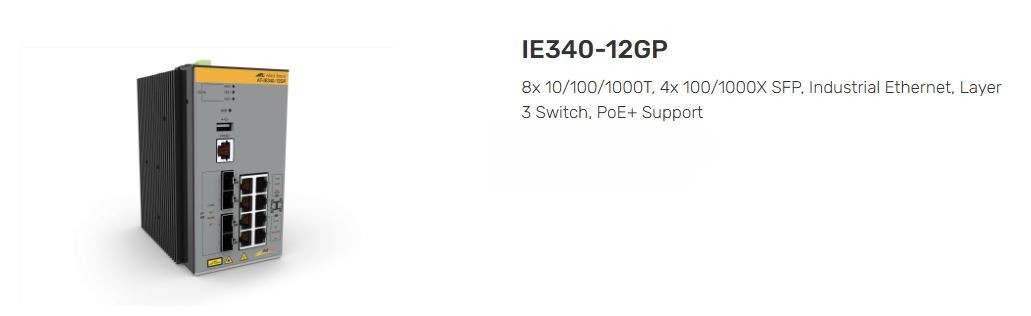

ALLIED TELESIS | TAA | AT-IE340-12GP-980
TAA 8 TX 4 SFP Industrial switch POE+
IE340 Series: Industrial Ethernet Gigabit Layer 3 Switches with PoE+ – Wired – 1Gbps – Networking / Ports Qty: 14 – Gigabit Ethernet – 512MB RAM – 128MB Flash Memory – 18 57V DC – 8x 10/100/1000T, 4x 100/1000X SFP, RJ45, USB – Five-year limited hardware
Ruggedized switches built to provide enduring performance in harsh environments, such as manufacturing, transportation and physical security. IE340 switches deliver Power over Ethernet (PoE+) with the performance and reliability demanded by deployments in the age of the Internet of Things (IoT).
- Primary Information
Network Device Type: Switch Model: IE340 Series Connectivity Technology: Wired Data Transfer Rate: 1 Gbps Networking / Ports Qty: 14 Data Link Protocol: Gigabit Ethernet Status Indicators: LED Indicators RAM / Total Installed Size: 512 MB Flash Memory / Installed Size: 128 MB Networking Compliant Standards: IEEE802.3at, IEEE 802.1X, IEEE 802.1Q, IEEE 802.1v Media Layer Supported: Layer 3 Power / Device Type: Power Supply Max Power Consumption: 271 Watt Power / Voltage Required: 18~57V DC Features: EMC for industrial plants; AlliedWare Plus operating system; Allied Telesis Autonomous Management Framework Plus (AMF Plus); NETCONF/RESTCONF with YANG data modelling; OpenFlow v1.3 for SDN; QoS with traffic shaping - Network
Power Over Ethernet (PoE) Support: yes PoE Power Consumption: 240W MAC Address Table Size: 16K entries Jumbo Frame Support: 9KB L2 jumbo frames Remote Management Protocol: DHCP; HTTP; HTTPS; Telnet; SSH; SNMP Routing Protocol: BGP, ECMP, OSPF, RIP Encryption Algorithm: SSL Authentication Method: TACACS+, RADIUS 10/100/1000BASE-T Ports: 8 SFP Ports: 4 Interfaces: 8x 10/100/1000T, 4x 100/1000X SFP, RJ45, USB - Interfaces / Ports
Interfaces: 8x 10/100/1000T, 4x 100/1000X SFP, RJ45, USB 10/100/1000BASE-T Ports: 8 SFP Ports: 4 - Dimensions&Miscellaneous
Width: 3.58 Inch Depth: 5.47 Inch Height: 6.02 Inch - Service&Support
Service & Support Type: Five-year limited hardware warranty - Special Feature
Min Operating Temperature: -40 Celsius Max Operating Temperature: 75 Celsius Min Storage Temperature: -40 Celsius Max Storage Temperature: 85 Celsius COO: SINGAPORE TAA compliance: Yes - UNSPSC Code
UNSPSC Code: 43222612
