ALLIED TELESIS | TAA | AT-IE220-6GHX-980

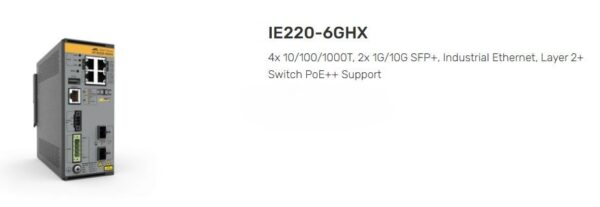

Allied Telesis AT IE220-6GHX – switch – 6 ports – managed – TAA Compliant
Allied Telesis AT IE220-6GHX – Switch – L2+ – managed – 4 x 10/100/1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) – DIN rail mountable, wall-mountable – PoE++ (180 W) – TAA Compliant
Ruggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.
- Primary Information
Product Description: Allied Telesis AT IE220-6GHX – switch – 6 ports – managed – TAA Compliant Device Type: Switch – 6 ports – L2+ – managed Subtype: Gigabit Ethernet Ports: 4 x 10/100/1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) Power Over Ethernet (PoE): PoE++ PoE Budget: 180 W Performance: Switching fabric bandwidth: 48 Gbps ¦ Forwarding rate: 35.7 Mpps Capacity: Buffer capacity (MB): 2 ¦ Priority queues: 8 ¦ Simultaneous VLANs: 4000 ¦ Multicast groups: 1023 MAC Address Table Size: 16K entries Jumbo Frame Support: 12KB Routing Protocol: IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, NETCONF, RESTCONF, DHCP, YANG, Syslog, MIB Features: Flow control, DiffServ support, surge protection, sFlow, DHCP snooping, ACL support, QoS, DAI, PVST+, reset button, UDLD, fanless, LACP, RSPAN, DoS, OpenFlow support, EPSRing, black hole routing, SCP, BIST, Cable fault locator (TDR), SDN, DDM, Active Fiber Monitoring, AAA, VLAN mirroring, CFM, storm protection, LAG, MRP, BPDU protection, LLDP-MED, IP Directed Broadcast, CCP, UFO Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ag, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bt Dimensions (WxDxH): 6.1 in x 5.4 in x 2.6 in System Requirements: AlliedWare Plus TAA Compliant: Yes Manufacturer Warranty: 5-year warranty - General
Device Type: Switch – 6 ports – L2+ – managed Enclosure Type: DIN rail mountable, wall-mountable Subtype: Gigabit Ethernet Ports: 4 x 10/100/1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) Power Over Ethernet (PoE): PoE++ PoE Budget: 180 W Performance: Switching fabric bandwidth: 48 Gbps ¦ Forwarding rate: 35.7 Mpps Capacity: Buffer capacity (MB): 2 ¦ Priority queues: 8 ¦ Simultaneous VLANs: 4000 ¦ Multicast groups: 1023 MAC Address Table Size: 16K entries Jumbo Frame Support: 12KB Routing Protocol: IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, NETCONF, RESTCONF, DHCP, YANG, Syslog, MIB Encryption Algorithm: DES, RSA, MD5, SSL, TLS, SHA-1, PEAP, TTLS, SHA-2, TLS 1.2, 3DES Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) Features: Flow control, DiffServ support, surge protection, sFlow, DHCP snooping, ACL support, QoS, DAI, PVST+, reset button, UDLD, fanless, LACP, RSPAN, DoS, OpenFlow support, EPSRing, black hole routing, SCP, BIST, Cable fault locator (TDR), SDN, DDM, Active Fiber Monitoring, AAA, VLAN mirroring, CFM, storm protection, LAG, MRP, BPDU protection, LLDP-MED, IP Directed Broadcast, CCP, UFO Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ag, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bt RAM: 512 MB DDR SDRAM Flash Memory: 128 MB Status Indicators: PoE, link/activity, fault, power 1, power 2 - Expansion / Connectivity
Interfaces: 2 x 1000Base-T RJ-45 PoE+ – 30 W ¦ 2 x 1000Base-T RJ-45 PoE++ – 60 W ¦ 2 x 1000Base-X/10GBase-X SFP+ uplink ¦ 1 x serial (console) RJ-45 management ¦ 1 x USB 2.0 Type A ¦ 1 x alarm 3 pin terminal block - Power
Power Device: Internal power supply Features: Redundant Power System (RPS) connector - Miscellaneous
Compliant Standards: UL, VCCI, ICES-003 Class A, UL 2043, FCC, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-6, ICES, REACH, IEC 60068-2-31, IP30, VCCI Class A, NEMA TS-2, China RoHS, RCM, IEC 60950-22, TSCA, FCC CFR47 Part 15 B Class A, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-29, AS/NZS CISPR 32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, CISPR 32 Class A, ITU-T G.8032, EN 55035, IEC/EN/UL 62368-1, IEC/EN 61000-3-3, EN 60715, EN 50021, IEC 62439-2, AS/NZS 62368-1, TEC, IEC 60512-99-002, UKCA, SCIP, UL/CSA 62368-1, EN IEC 61000-3-2 TAA Compliant: Yes - Software / System Requirements
OS Required: AlliedWare Plus - Dimensions & Weight
Width: 6.1 in Depth: 5.4 in Height: 2.6 in - Manufacturer Warranty
Service & Support: Limited warranty – 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 – 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 185 °F Humidity Range Storage: 5 – 95% (non-condensing) - Special Feature
COO: SINGAPORE TAA compliance: Yes - UNSPSC Code
UNSPSC Code: 43222612
