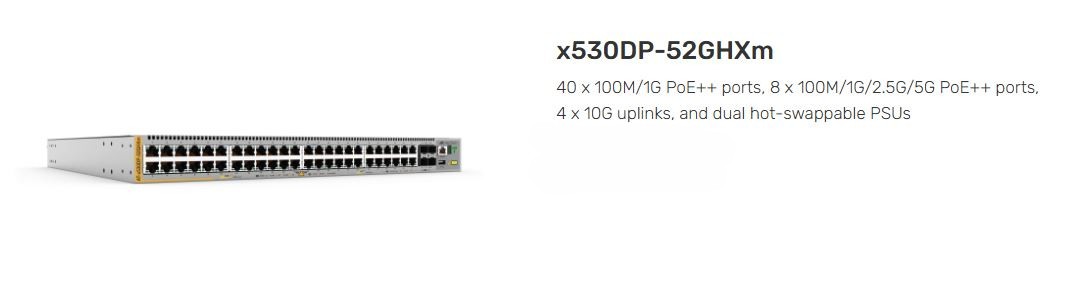

ALLIED TELESIS | TAA | AT-X530DP-52GHXM-900
TAA L3 Stackable Switch, 40x 10/100/1000-T PoE++, 8x 100M/1G/2.5G/5G-T PoE++, 4x SFP+ Ports and dual hotswap PSU bays
x530DP-52GHXm stackable Multi-Gigabit layer 3 switch is high-performing and feature-rich, with 40 x 100M/1G PoE++ ports, 8 x 100M/1G/2.5G/5G PoE++ ports, and 4 x 10G uplinks, and dual hot-swappable PSUs, 1GB DDR3 SDRAM, 256MB NAND flash memory
The Allied Telesis x530 Series of stackable Multi-Gigabit Layer 3 switches feature high capacity, resiliency and easy management, making them the ideal choice for demanding distribution and high-speed connectivity applications.
- Primary Information
Network Device Type: Switch Model: x530DP-52GHXm Form Factor: 1RU Connectivity Technology: Wired Data Transfer Rate: 10 Gbps Networking / Ports Qty: 54 Data Link Protocol: Gigabit Ethernet Status Indicators: LED Indicators RAM / Total Installed Size: 1 GB Flash Memory / Installed Size: 256 MB Networking Compliant Standards: IEEE 802.1D, IEEE 802.1s, , IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af Media Layer Supported: Layer 3 Power / Device Type: Power Supply Power / Installed Qty: 2 Uplink Port: 4 x 10G uplinks Features: Allied Telesis Autonomous Management FrameworkTM Plus (AMF Plus); AMF-Security compatile; Multi-Gigabit 1/2.5/5G ports ; EPSRTM (master and transit) ; G.8032 ERPS for resilient rings; OpenFlow for SDN; Active Fiber Monitoring (AFM); Upstream Forwarding Only (UFO); Bi-directional Forwarding Detection (BFD) - Network
Power Over Ethernet (PoE) Support: YES PoE Power Consumption: 1480W MAC Address Table Size: Up to 16K Jumbo Frame Support: 10KB L2 and 9KB L3 Remote Management Protocol: SNMP; DHCP; Syslog; SSH; RMON Routing Protocol: BGP, RIP Encryption Algorithm: AES; 3DES Authentication Method: RADIUS, TACACS+ SFP+ Ports: 4 Interfaces: 40 x 100M/1G PoE++ ports, 8 x 100M/1G/2.5G/5G PoE++ ports, and 4 x 10G uplinks - Interfaces / Ports
Interfaces: 40 x 100M/1G PoE++ ports, 8 x 100M/1G/2.5G/5G PoE++ ports, and 4 x 10G uplinks SFP+ Ports: 4 - Dimensions&Miscellaneous
Width: 17.36 Inch Depth: 16.57 Inch Height: 1.73 Inch Weight: 5.6 Kg - Special Feature
Min Operating Temperature: 0 Celsius Max Operating Temperature: 65 Celsius Min Storage Temperature: -25 Celsius Max Storage Temperature: 70 Celsius COO: SINGAPORE - UNSPSC Code
UNSPSC Code: 43222612
