ALLIED TELESIS | AT-X530L-28GPX-10

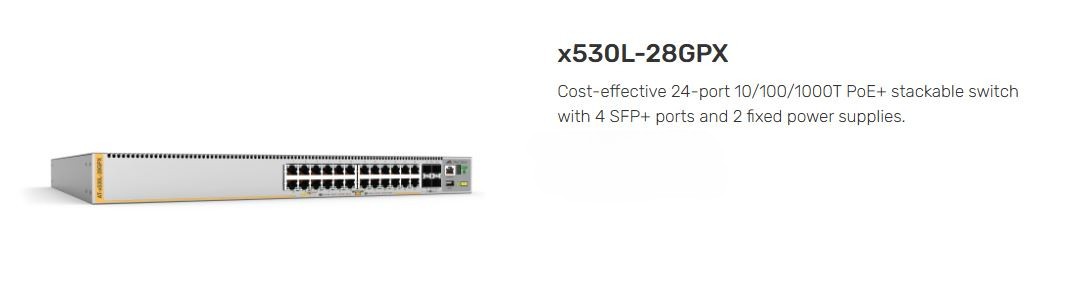

Allied Telesis AT x530L-28GPX – switch – 24 ports – managed – rack-mountable
Allied Telesis AT x530L-28GPX – Switch – L3 – managed – 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) – rack-mountable – PoE+ (740 W)
The Allied Telesis x530L Series stackable Layer 3 switches feature high capacity, resiliency and easy management. With both Multi-Gigabit and high port density models, plus Power over Ethernet, they are the ideal choice for network access applications.
- Primary Information
Product Description: Allied Telesis AT x530L-28GPX – switch – 24 ports – managed – rack-mountable Device Type: Switch – 24 ports – L3 – managed – stackable Enclosure Type: Rack-mountable Subtype: Gigabit Ethernet Ports: 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) Power Over Ethernet (PoE): PoE+ PoE Budget: 740 W Performance: Switching capacity: 128 Gbps ¦ Forwarding rate: 95.2 Mpps ¦ Stacking bandwidth: 40 Gbps ¦ Latency (10 Mbps): 29.91 µs ¦ Latency (100 Mbps): 6.06 µs ¦ Latency (1 Gbps): 3.98 µs ¦ Latency (10 Gbps): 1.63 µs Capacity: Virtual interfaces (VLANs): 4094 ¦ Packet buffer size: 3 MB ¦ OpenFlow flows: up to 1250 ¦ Priority queues: 8 MAC Address Table Size: 16K entries Jumbo Frame Support: 10KB Routing Protocol: ECMP, policy-based routing (PBR), OSPF, RIP, BGP, static IPv6 routing, BGP-4, CIDR, RIP-2, VRRP, RSTP, PIM-SM, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-SSM, PIM-DM, OSPFv2, OSPFv3, OSPF for IPv6, MSTP, VRRPv3, RIPng Remote Management Protocol: TACACS+, DHCP, Telnet, SSH 6, NTP, CLI, SCP, SFTP, RADIUS, ICMP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, RSTP, SSH, HTTPS, TFTP, SMTP, HTTP, SLP, SNMP 6, IPv6 Features: AMF, VCStack, EPSRing, IPv6 support, EEE, LD-VCStack, SLP, CFM, Active Fiber Monitoring, Voice VLAN, sFlow, RSPAN, DDM, 802.1x authentication, Extensive ACL support, SDN, OpenFlow support, auto-negotiation, BIST, Cable fault locator (TDR), UDLD, UDP, DNS relay, Syslog support, NTP client, NTP server, DHCP client, DHCP relay, storm protection, QoS, MIB, DiffServ support, STP Root Guard, CPP, PVST+, BPDU, MAC address filtering, BPDU protection, NAC, DoS attack prevention, DHCP snooping, IP source guard, DAI, password protection, AAA, Logical Link Control, ARP support, BOOTP support, proxy ARP, DNS client, router advertisement guard, LLDP support, VACM, BSR Mechanism, IGMP snooping, ERPS, LACP support, OCSP support, GVRP, LLDP-MED, PPP Compliant Standards: ITU-T G.8032, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3u, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, X.509, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1v, IEEE 802.3ac, ANSI/TIA-1057, IEEE 802.3ae Power: AC 120/230 V (50 – 60 Hz) Dimensions (WxDxH): 17.4 in x 16.6 in x 1.7 in Weight: 13.67 lbs Localization: United States - General
Device Type: Switch – 24 ports – L3 – managed – stackable Enclosure Type: Rack-mountable Subtype: Gigabit Ethernet Ports: 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) Power Over Ethernet (PoE): PoE+ PoE Budget: 740 W Performance: Switching capacity: 128 Gbps ¦ Forwarding rate: 95.2 Mpps ¦ Stacking bandwidth: 40 Gbps ¦ Latency (10 Mbps): 29.91 µs ¦ Latency (100 Mbps): 6.06 µs ¦ Latency (1 Gbps): 3.98 µs ¦ Latency (10 Gbps): 1.63 µs Capacity: Virtual interfaces (VLANs): 4094 ¦ Packet buffer size: 3 MB ¦ OpenFlow flows: up to 1250 ¦ Priority queues: 8 MAC Address Table Size: 16K entries Jumbo Frame Support: 10KB Max Units In A Stack: 4 Routing Protocol: ECMP, policy-based routing (PBR), OSPF, RIP, BGP, static IPv6 routing, BGP-4, CIDR, RIP-2, VRRP, RSTP, PIM-SM, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-SSM, PIM-DM, OSPFv2, OSPFv3, OSPF for IPv6, MSTP, VRRPv3, RIPng Remote Management Protocol: TACACS+, DHCP, Telnet, SSH 6, NTP, CLI, SCP, SFTP, RADIUS, ICMP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, RSTP, SSH, HTTPS, TFTP, SMTP, HTTP, SLP, SNMP 6, IPv6 Encryption Algorithm: MD5, AES, Triple DES, CCM, CMAC, GCM, XTS, DSA, ECDSA, RSA, 224-bit SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, SHA-1, DRBG, RNG, 128-bit AES, 192-bit AES, 256-bit AES, DES, FIPS 180-1, FIPS 186, FIPS 46-3, SSL, SSL 2.0, SSL 3.0, TLS, TTLS, PEAP, TLS 1.2, CRL, PKI Authentication Method: TACACS+, Secure Shell (SSH), RADIUS, X.509 certificates, Extensible Authentication Protocol (EAP), Secure Shell v.2 (SSH2) Features: AMF, VCStack, EPSRing, IPv6 support, EEE, LD-VCStack, SLP, CFM, Active Fiber Monitoring, Voice VLAN, sFlow, RSPAN, DDM, 802.1x authentication, Extensive ACL support, SDN, OpenFlow support, auto-negotiation, BIST, Cable fault locator (TDR), UDLD, UDP, DNS relay, Syslog support, NTP client, NTP server, DHCP client, DHCP relay, storm protection, QoS, MIB, DiffServ support, STP Root Guard, CPP, PVST+, BPDU, MAC address filtering, BPDU protection, NAC, DoS attack prevention, DHCP snooping, IP source guard, DAI, password protection, AAA, Logical Link Control, ARP support, BOOTP support, proxy ARP, DNS client, router advertisement guard, LLDP support, VACM, BSR Mechanism, IGMP snooping, ERPS, LACP support, OCSP support, GVRP, LLDP-MED, PPP Compliant Standards: ITU-T G.8032, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3u, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, X.509, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1v, IEEE 802.3ac, ANSI/TIA-1057, IEEE 802.3ae RAM: 1 GB DDR3 SDRAM Flash Memory: 256 MB Status Indicators: Status - Expansion / Connectivity
Interfaces: 24 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W ¦ 4 x 1000Base-X/10GBase-X SFP+ uplink ¦ 2 x network stack device ¦ Console ¦ USB - Power
Power Device: Internal power supply Installed Qty: 2 Voltage Required: AC 120/230 V (50 – 60 Hz) Power Consumption Operational: 890 Watt - Miscellaneous
Included Accessories: 19″ rack mounting kit Compliant Standards: EN 55032 Class A, FCC Class A certified, AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1-03, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, UL 60950-1, VCCI Class A, UL, cUL, EU RoHS, China RoHS, HMAC Localization: United States - Dimensions & Weight
Width: 17.4 in Depth: 16.6 in Height: 1.7 in Weight: 13.67 lbs - Dimensions & Weight (Shipping)
Shipping Width: 22.7 in Shipping Depth: 21.6 in Shipping Height: 6 in Shipping Weight: 18.52 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 – 90% (non-condensing) Min Storage Temperature: -13 °F Max Storage Temperature: 158 °F Humidity Range Storage: 5 – 95% (non-condensing) - Special Feature
COO: INDONESIA TAA compliance: No - UNSPSC Code
UNSPSC Code: 43222612
