ALLIED TELESIS | AT-X530L-18GHXM-10

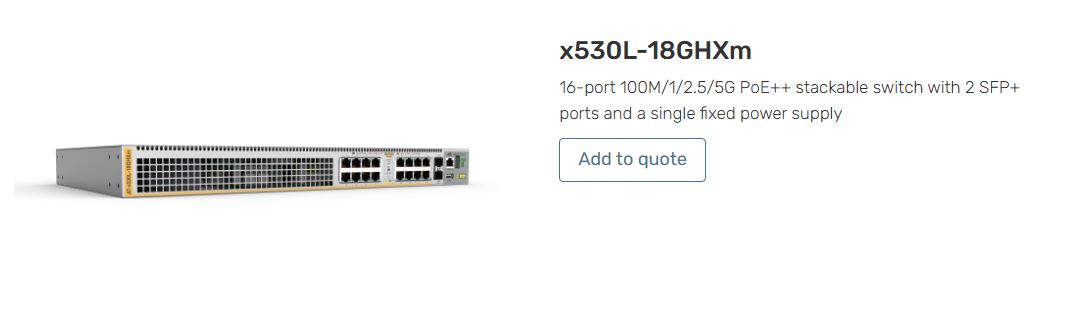

Allied Telesis AT x530L-18GHXm – switch – 16 ports – managed – rack-mountable
Allied Telesis AT x530L-18GHXm – Switch – L3 – managed – 16 x 100/1000/2.5G/5G (PoE++) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) – rack-mountable – PoE++ (720 W)
The Allied Telesis x530L Series stackable Layer 3 switches feature high capacity, resiliency and easy management. With both Multi-Gigabit and high port density models, plus Power over Ethernet, they are the ideal choice for network access applications.
- Primary Information
Product Description: Allied Telesis AT x530L-18GHXm – switch – 16 ports – managed – rack-mountable Device Type: Switch – 16 ports – L3 – managed – stackable Enclosure Type: Rack-mountable 1U Subtype: 5 Gigabit Ethernet Ports: 16 x 100/1000/2.5G/5G (PoE++) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) Power Over Ethernet (PoE): PoE++ PoE Budget: 720 W Performance: Switching fabric speed: 200 Gbps ¦ Forwarding rate: 148.8 Mpps ¦ Stacking bandwidth: 40 Gbps ¦ Latency (100 Mbps): 8.35 µs ¦ Latency (1 Gbps): 7.96 µs ¦ Latency (2.5 Gbps): 7.72 µs ¦ Latency (5 Gbps): 5.23 µs ¦ Latency (10 Gbps): 2.56 µs Capacity: Virtual interfaces (VLANs): 4094 ¦ Packet buffer size: 3 MB ¦ OpenFlow flows: up to 1250 ¦ Priority queues: 8 MAC Address Table Size: 16K entries Jumbo Frame Support: 10KB Routing Protocol: MSDP, PIM-SM, ECMP, OSPF, RIP, BGP, static IP routing, policy-based routing (PBR), BGP-4, CIDR, RIP-2, VRRP, RSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-SSM, PIM-DM, OSPFv2, OSPFv3, OSPF for IPv6, MSTP, VRRPv3, RIPng Remote Management Protocol: SNMP 6, DHCP, HTTP, HTTPS, Telnet, SSH 6, NTP, SCP, SFTP, TACACS+, CLI, RADIUS, ICMP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, RSTP, SSH, TFTP, SMTP, SLP, IPv6 Features: AMF, AWC, VCStack, EPSRing, EEE, OpenFlow support, ACL support, auto provisioning, automatic backups, CFM, MSDP, QoS, RSPAN, sFlow, SLP, Voice VLAN, SDN, DHCP snooping, 802.1x authentication, MAC address authentication, AAA, auto-negotiation, CCP, BIST, DDM, Cable fault locator (TDR), UDLD, UDP, black hole routing, DNS relay, Syslog support, DHCP client, DHCP relay, DHCP server, DNS client, eco-friendly button, DiffServ support, storm protection, BPDU forward, CPP, PVST+, STP Root Guard, BPDU protection, NAC, DoS attack prevention, DAI, BOOTP support, Active Fiber Monitoring, NTP server, MAC address filtering, IGMP snooping, PPP, router advertisement guard, VACM, proxy ARP, Loop Guard, VLAN mirroring, NTP client, LLDP-MED, MLD proxy, IP source guard, BPDU, ICMP Compliant Standards: ITU-T G.8032, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad (LACP) Power: AC 100-240 V (50/60 Hz) 10 A Dimensions (WxDxH): 17.4 in x 10.1 in x 1.7 in Weight: 9.48 lbs Localization: United States Manufacturer Warranty: 5-year warranty - General
Device Type: Switch – 16 ports – L3 – managed – stackable Enclosure Type: Rack-mountable 1U Subtype: 5 Gigabit Ethernet Ports: 16 x 100/1000/2.5G/5G (PoE++) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) Power Over Ethernet (PoE): PoE++ PoE Budget: 720 W Performance: Switching fabric speed: 200 Gbps ¦ Forwarding rate: 148.8 Mpps ¦ Stacking bandwidth: 40 Gbps ¦ Latency (100 Mbps): 8.35 µs ¦ Latency (1 Gbps): 7.96 µs ¦ Latency (2.5 Gbps): 7.72 µs ¦ Latency (5 Gbps): 5.23 µs ¦ Latency (10 Gbps): 2.56 µs Capacity: Virtual interfaces (VLANs): 4094 ¦ Packet buffer size: 3 MB ¦ OpenFlow flows: up to 1250 ¦ Priority queues: 8 MAC Address Table Size: 16K entries Jumbo Frame Support: 10KB Max Units In A Stack: 8 Routing Protocol: MSDP, PIM-SM, ECMP, OSPF, RIP, BGP, static IP routing, policy-based routing (PBR), BGP-4, CIDR, RIP-2, VRRP, RSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-SSM, PIM-DM, OSPFv2, OSPFv3, OSPF for IPv6, MSTP, VRRPv3, RIPng Remote Management Protocol: SNMP 6, DHCP, HTTP, HTTPS, Telnet, SSH 6, NTP, SCP, SFTP, TACACS+, CLI, RADIUS, ICMP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, RSTP, SSH, TFTP, SMTP, SLP, IPv6 Encryption Algorithm: 128-bit AES, 192-bit AES, 256-bit AES, 3DES, AES-CBC, AES-CFB, AES-ECB, AES-OFB, CCM, CMAC, DES, DRBG, DSA, ECDSA, GCM, HMAC, MD5, RNG, RSA, SHA-1, SHA-2, SHA-224, SHA-256, SHA-384, SHA-512, XTS Authentication Method: TACACS+, RADIUS, Secure Shell (SSH), X.509 certificates, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) Features: AMF, AWC, VCStack, EPSRing, EEE, OpenFlow support, ACL support, auto provisioning, automatic backups, CFM, MSDP, QoS, RSPAN, sFlow, SLP, Voice VLAN, SDN, DHCP snooping, 802.1x authentication, MAC address authentication, AAA, auto-negotiation, CCP, BIST, DDM, Cable fault locator (TDR), UDLD, UDP, black hole routing, DNS relay, Syslog support, DHCP client, DHCP relay, DHCP server, DNS client, eco-friendly button, DiffServ support, storm protection, BPDU forward, CPP, PVST+, STP Root Guard, BPDU protection, NAC, DoS attack prevention, DAI, BOOTP support, Active Fiber Monitoring, NTP server, MAC address filtering, IGMP snooping, PPP, router advertisement guard, VACM, proxy ARP, Loop Guard, VLAN mirroring, NTP client, LLDP-MED, MLD proxy, IP source guard, BPDU, ICMP Compliant Standards: ITU-T G.8032, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad (LACP) RAM: 1 GB DDR3 SDRAM Flash Memory: 256 MB Status Indicators: Switch ID, link/activity, PoE - Expansion / Connectivity
Interfaces: 16 x 100/1000/2.5G/5G RJ-45 PoE++ – 90 W ¦ 2 x 1/10GBase-X SFP+ uplink ¦ 1 x console RJ-45 ¦ 1 x USB 2.0 Type A - Power
Power Device: Internal power supply Installed Qty: 1 Voltage Required: AC 100-240 V (50/60 Hz) Electric Current Required: 10 A - Miscellaneous
Compliant Standards: FIPS 140-2, FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55032 Class A, EU RoHS Localization: United States - Software / System Requirements
Software Included: Alliedware Plus - Dimensions & Weight
Width: 17.4 in Depth: 10.1 in Height: 1.7 in Weight: 9.48 lbs - Dimensions & Weight (Shipping)
Shipping Width: 20.7 in Shipping Depth: 16.2 in Shipping Height: 5.1 in Shipping Weight: 13.18 lbs - Manufacturer Warranty
Service & Support: Limited warranty – 5 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 – 90% (non-condensing) Min Storage Temperature: -13 °F Max Storage Temperature: 158 °F Humidity Range Storage: 5 – 95% (non-condensing) - Special Feature
COO: CHINA TAA compliance: No - UNSPSC Code
UNSPSC Code: 43222612
