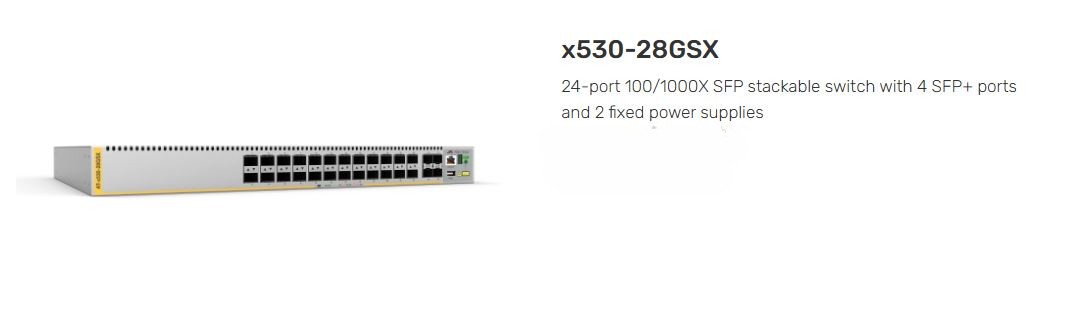

ALLIED TELESIS | AT-X530-28GSX-10
Allied Telesis AT x530-28GSX – switch – 24 ports – managed – rack-mountable
Allied Telesis AT x530-28GSX – Switch – L3 – managed – 24 x Gigabit SFP + 4 x 1 Gigabit / 10 Gigabit SFP+ – rack-mountable
The Allied Telesis x530 Series of stackable Multi-Gigabit Layer 3 switches feature high capacity, resiliency and easy management, making them the ideal choice for demanding distribution and high-speed connectivity applications.
- Primary Information
Product Description: Allied Telesis AT x530-28GSX – switch – 24 ports – managed – rack-mountable Device Type: Switch – 24 ports – L3 – managed – stackable Enclosure Type: Rack-mountable 1U Subtype: Gigabit Ethernet Ports: 24 x Gigabit SFP + 4 x 1 Gigabit / 10 Gigabit SFP+ Performance: Stacking bandwidth: 40 Gbps ¦ Switching capacity: 160 Gbps ¦ Forwarding performance: 119 Mpps ¦ Latency (100 Mbps): 12.20 µs ¦ Latency (1 Gbps): 4.02 µs ¦ Latency (10 Gbps): 3.11 µs Capacity: Virtual interfaces (VLANs): 4094 ¦ ARP table (IPv4): 4000 ¦ IPv4 routes: 13000 ¦ OSPF IPv4 routes: 64 ¦ BGP routes: 64 ¦ Link aggregation groups: 128 ¦ Packet buffer size: 1.5 MB MAC Address Table Size: 16K entries Jumbo Frame Support: 10240 bytes Routing Protocol: OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, PIM-SSM, static IPv4 routing, policy-based routing (PBR), RIPng, MLDv2, MLD, VRRPv3, RSTP Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 2c, HTTP, HTTPS, TFTP, SMTP, NTP, DHCP, MIB Features: Flow control, BOOTP support, VLAN support, packet filtering, port mirroring, store and forward, sFlow, VRRP support, MSTP support, DHCP snooping, QoS, DHCP server, MLD snooping, PVST+, Cable Diagnostics Function, BFD, DHCP relay, Port Security, RSPAN, port based access control, DNS relay, DHCP client, GVRP, RRSTP, packet storm protection, CoS, MSDP, 802.1x authentication, ERPS, OpenFlow support, VCStack, LD-VCStack, AMF, VXLAN, Link Aggregation, Active Fiber Monitoring, Loop Guard, Voice VLAN, CFM, RA guard, storm protection, Guest VLAN, proxy ARP, EEE, BPDU Filter, VLAN Tagging, port trunking, LDF support, BPDU Guard, ARP spoofing, Q-in-Q tunneling, Multicast routing, Web authentication, UDLD, LLDP-MED, RADIUS Server, AWC, AWC-CB, AWC-SC, LLDP, UFO, EPSR Enhanced Recovery, EPSRSLP, port bandwidth limit, remote mirroring, Auth-Fail VLAN, MAC address-based authentication, RADIUS proxy, ping polling, UDP broadcast helper Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032, IEEE 802.3bz Power: AC 100-240 V (50/60 Hz) 1 A Power Redundancy: Optional Dimensions (WxDxH): 17.4 in x 12.7 in x 1.7 in Weight: 11.46 lbs Localization: United States Manufacturer Warranty: 1-year warranty - General
Device Type: Switch – 24 ports – L3 – managed – stackable Enclosure Type: Rack-mountable 1U Subtype: Gigabit Ethernet Ports: 24 x Gigabit SFP + 4 x 1 Gigabit / 10 Gigabit SFP+ Performance: Stacking bandwidth: 40 Gbps ¦ Switching capacity: 160 Gbps ¦ Forwarding performance: 119 Mpps ¦ Latency (100 Mbps): 12.20 µs ¦ Latency (1 Gbps): 4.02 µs ¦ Latency (10 Gbps): 3.11 µs Capacity: Virtual interfaces (VLANs): 4094 ¦ ARP table (IPv4): 4000 ¦ IPv4 routes: 13000 ¦ OSPF IPv4 routes: 64 ¦ BGP routes: 64 ¦ Link aggregation groups: 128 ¦ Packet buffer size: 1.5 MB MAC Address Table Size: 16K entries Jumbo Frame Support: 10240 bytes Max Units In A Stack: 8 Routing Protocol: OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, PIM-SSM, static IPv4 routing, policy-based routing (PBR), RIPng, MLDv2, MLD, VRRPv3, RSTP Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 2c, HTTP, HTTPS, TFTP, SMTP, NTP, DHCP, MIB Encryption Algorithm: MD5, TLS, PEAP, TTLS Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Extensible Authentication Protocol (EAP) Features: Flow control, BOOTP support, VLAN support, packet filtering, port mirroring, store and forward, sFlow, VRRP support, MSTP support, DHCP snooping, QoS, DHCP server, MLD snooping, PVST+, Cable Diagnostics Function, BFD, DHCP relay, Port Security, RSPAN, port based access control, DNS relay, DHCP client, GVRP, RRSTP, packet storm protection, CoS, MSDP, 802.1x authentication, ERPS, OpenFlow support, VCStack, LD-VCStack, AMF, VXLAN, Link Aggregation, Active Fiber Monitoring, Loop Guard, Voice VLAN, CFM, RA guard, storm protection, Guest VLAN, proxy ARP, EEE, BPDU Filter, VLAN Tagging, port trunking, LDF support, BPDU Guard, ARP spoofing, Q-in-Q tunneling, Multicast routing, Web authentication, UDLD, LLDP-MED, RADIUS Server, AWC, AWC-CB, AWC-SC, LLDP, UFO, EPSR Enhanced Recovery, EPSRSLP, port bandwidth limit, remote mirroring, Auth-Fail VLAN, MAC address-based authentication, RADIUS proxy, ping polling, UDP broadcast helper Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032, IEEE 802.3bz RAM: 1 GB DDR3 SDRAM Flash Memory: 256 MB Status Indicators: Status, link/activity, SFP, SFP+, switch ID - Expansion / Connectivity
Interfaces: 24 x 100 / 1000Base-X SFP ¦ 4 x 1/10GBase-X SFP+ ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x USB Type A - Power
Power Device: Internal power supply – hot-plug Max Supported Qty: 2 Power Redundancy: Optional Voltage Required: AC 100-240 V (50/60 Hz) Electric Current Required: 1 A - Miscellaneous
Included Accessories: Accessory kit Rack Mounting Kit: Included Compliant Standards: FCC Class A certified, UL, cUL, EN 61000-3-2, EN55024, AS/NZS 60950-1, EMC, ICES-003 Class A, FIPS 140-2, UL 60950-1, EN 60950-1, EN 60825-1, VCCI Class A, China RoHS, EN 55032 Class A, EU RoHS, CAN/CSA-C22.2 No. 60950-1-03 Localization: United States - Software / System Requirements
Software Included: Alliedware Plus - Dimensions & Weight
Width: 17.4 in Depth: 12.7 in Height: 1.7 in Weight: 11.46 lbs - Manufacturer Warranty
Service & Support: Limited warranty – 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 – 90% RH (non-condensing) Min Storage Temperature: -13 °F Max Storage Temperature: 158 °F Humidity Range Storage: 5 – 90% RH (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 43222612
