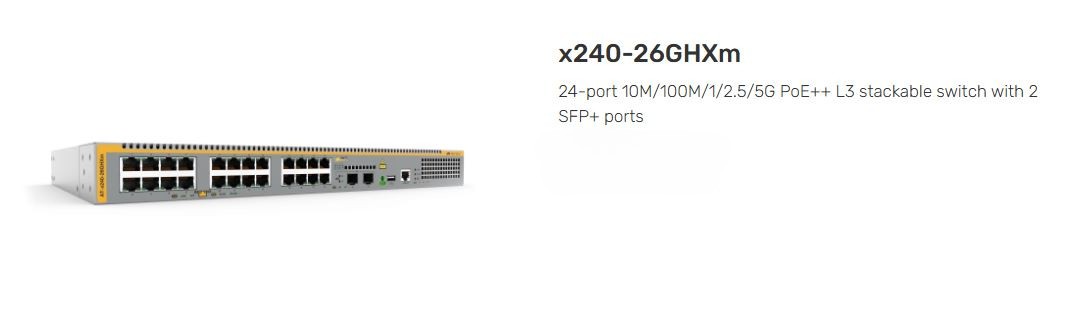

ALLIED TELESIS | AT-X240-26GHXM-10
Multi-Gigabit Layer 3 Lite Managed Switch, 24x 10/100M/1/2.5/5G PoE++, 2x SFP+ ports, US Power Cord
Multi-Gigabit Layer 3 Lite Managed Switch, 24x 10/100M/1/2.5/5G PoE++, 2x SFP+ ports, US Power Cord, Up to 32K MAC addresses. 1GB DDR4 SDRAM, 256MB flash memory, Supports 9KB L2 jumbo frames
Allied Telesis x240 Series Layer 3 stackable multi-gigabit switches, with 10 gigabit uplinks, offer an impressive set of features in a compact design. Power over Ethernet models add deployment flexibility by combining power delivery of up to 90 watts to next-generation endpoints, with high-speed throughput. The ability to stack 2 units creates a resilient network edge solution that’s ready for modern business operation.
Optional Services: Net.Cover Advanced Support Programs
- Primary Information
Network Device Type: Switch Model: AT-X240-26GHXM-10 Connectivity Technology: Wired Data Transfer Rate: 10 Gbps Networking / Ports Qty: 28 Data Link Protocol: 10 Gigabit Ethernet Status Indicators: LEDs RAM / Total Installed Size: 1 GB Flash Memory / Installed Size: 256 MB Networking Compliant Standards: IEEE 802.2; IEEE 802.3; IEEE 802.3ab; IEEE 802.3ae; IEEE 802.3af; IEEE 802.3at Media Layer Supported: Layer 3 Features: Autonomous Management FrameworkTM Plus (AMF Plus); AMF-Security compatible; VCStack 2 units at any speed - Network
Power Over Ethernet (PoE) Support: YES PoE Power Consumption: Up to 90W MAC Address Table Size: Up to 32K Jumbo Frame Support: Supports 9KB L2 jumbo frames Remote Management Protocol: Telnet; Syslog; SSH; SNMP Routing Protocol: static routing and RIP Encryption Algorithm: AES; 3DES Authentication Method: RADIUS and TACACS+ SFP+ Ports: 2 Interfaces: 24 10M/100M/1/2.5/5 GIGABIT PORTS; 2 1/10 GIGABIT SFP+ PORTS - Interfaces / Ports
Interfaces: 24 10M/100M/1/2.5/5 GIGABIT PORTS; 2 1/10 GIGABIT SFP+ PORTS SFP+ Ports: 2 - Dimensions&Miscellaneous
Width: 17.32 Inch Depth: 11.42 Inch Height: 1.73 Inch Weight: 4.3 Kg - Special Feature
Min Operating Temperature: 0 CELSIUS Max Operating Temperature: 50 CELSIUS Min Storage Temperature: -25 CELSIUS Max Storage Temperature: 70 CELSIUS COO: CHINA - UNSPSC Code
UNSPSC Code: 43222612
