ALLIED TELESIS | AT-TQm6702e GEN2-01
Allied Telesis AT TQ6702e GEN2 – wireless access point – Wi-Fi 6

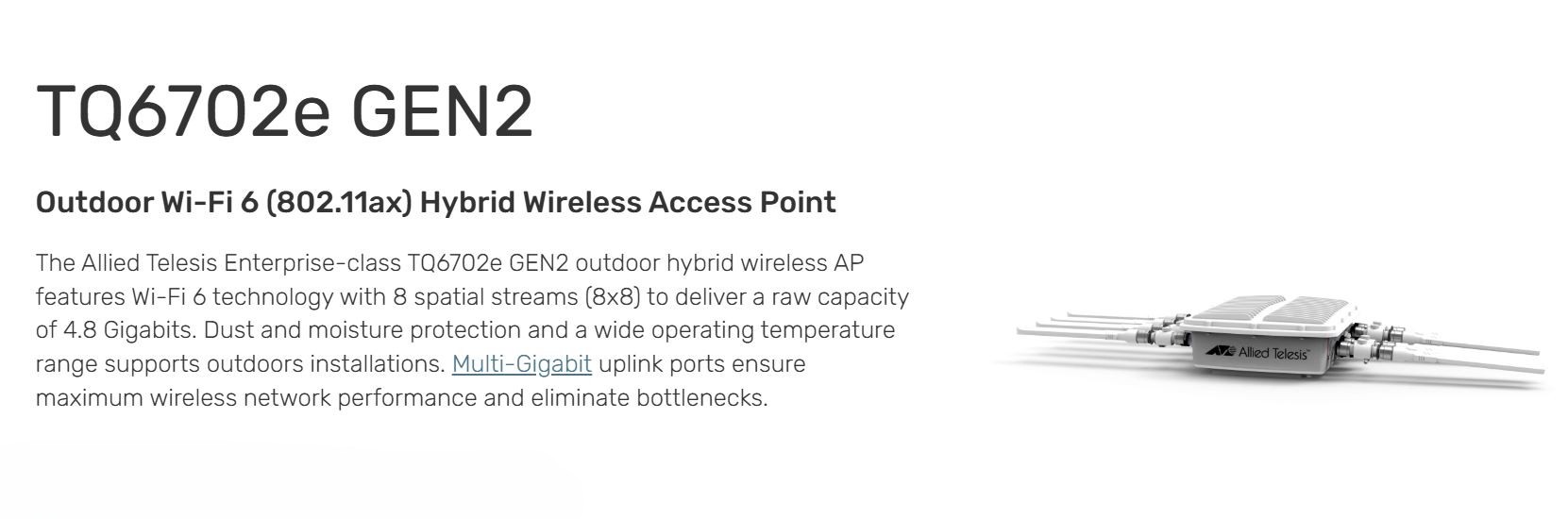

The Allied Telesis Enterprise-class TQ6702e GEN2 outdoor hybrid wireless AP features Wi-Fi 6 technology with 8 spatial streams (8×8) to deliver a raw capacity of 4.8 Gigabits. Dust and moisture protection and a wide operating temperature range supports outdoors installations. Multi-Gigabit uplink ports ensure maximum wireless network performance and eliminate bottlenecks. Allied Telesis AT TQ6702E GEN2 – Wireless access point – GigE, 5 GigE, 2.5 GigE – Wi-Fi 6 – 2.4 GHz, 5 GHz – wall / pole mountable.
Optional Services: Net.Cover Advanced Support Programs
- Primary Information
Product Description: Allied Telesis AT TQ6702E GEN2 – wireless access point – Wi-Fi 6 Device Type: Wireless access point Form Factor: Wall / pole mountable – outdoor Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) Frequency Band: 2.4 GHz, 5 GHz Capacity: Spatial streams: up to 8 ¦ Maximum MAC filters: 1024 Included Accessories: Pole/wall mount kit Power Over Ethernet (PoE) Supported: PoE++ Dimensions (WxDxH): 10.1 in x 8.9 in x 3.5 in Weight: 9.7 lbs Manufacturer Warranty: 5-year warranty - General
Device Type: Wireless access point Ruggedized Design: Outdoor Width: 10.1 in Depth: 8.9 in Height: 3.5 in Weight: 9.7 lbs - Networking
Form Factor: Wall / pole mountable Connectivity Technology: Wireless Data Transfer Rate: 4.8 Gbps Line Coding Format: OFDMA, OFDM, DSSS, CCK, DQPSK, DBPSK, BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) Spread Spectrum Method: OFDMA, OFDM, DSSS Network / Transport Protocol: HTTP, HTTPs, DHCP, NTP, CSMA/CA Remote Management Protocol: HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, Syslog, DHCP, NTP Frequency Band: 2.4 GHz, 5 GHz Capacity: Spatial streams: up to 8 ¦ Maximum MAC filters: 1024 Features: Moisture protection, weatherproof, dustproof, Multi-Dimensional Exchange (MDX), Autonomous Wave Control (AWC), AWC-Smart Connect (AWC-SC), AWC-Channel Blanket (AWC-CB), uplink, Captive Portal, MU-MIMO technology, 8×8 SU-MIMO technology, seamless roaming, Virtual Access Points (VAP), surge protection, metal housing, Bi-Directional (BiDi), Spatial Reuse (RS), Airtime Fairness, band steering, Fast Roaming, load balancing, Wireless Distribution System (WDS) support, Wi-Fi Multimedia (WMM) support, zero-wait DFS, firmware upgradable, 802.1x authentication, hidden SSID, client isolation, Neighbor AP detection, flow control Encryption Algorithm: WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, WPA-Enterprise, WPA-Personal, 64-bit WEP, 128-bit WEP, AES-CCMP, TKIP, CNSA, AES Authentication Method: RADIUS, Radio Service Set ID (SSID) Compliant Standards: Wi-Fi CERTIFIED 6, IEEE 802.11ax, IEEE 802.11v, IEEE 802.11k, IEEE 802.11r, IEEE 802.1x, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.1AX, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3bt, IEEE 802.1Q, IEEE 802.11e, IEEE 802.11i - Antenna
Antenna: External detachable Antenna Qty: 8 Directivity: Omni-directional - Expansion / Connectivity
Interfaces: 1 x 2.5 GBase-T (PoE++) – RJ-45 - Miscellaneous
Included Accessories: Pole/wall mount kit Compliant Standards: IP66, IP67, Plug and Play, RCM, IC, FCC, WPC, OFCA, NBTC, MIC, SIRIM, NCC, SRRC, iDA, EN 62368-1, UL 62368-1, UL 2043, UL 60950-22, EN 60950-22, CB 62368-1, CB 90950-1, IEC 60950-22, EN 301 489-1, EN 301 489-17, EN55024, EN55032 Class B, EN55035, EN60601-1-2, EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, VCCI Class B, FCC Part 15 Subpart B Class B, AS/NZS CISPR 32, IEC 60068-2-52, IEC 60068-2-5, IEC 60529, ARIB STD-T66, ARIB STD-T71, AS/NZS 4268, EN 300 328, EN 301 893, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E - Power
Power Over Ethernet (PoE) Supported: PoE++ Power Device: Power injector Power Consumption Operational: 15 Watt - Manufacturer Warranty
Service & Support: Limited warranty – 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 149 °F Humidity Range Operating: 5 – 95% RH (non-condensing) - Special Feature
COO: CHINA TAA compliance: No - UNSPSC Code
UNSPSC Code: 43222631
